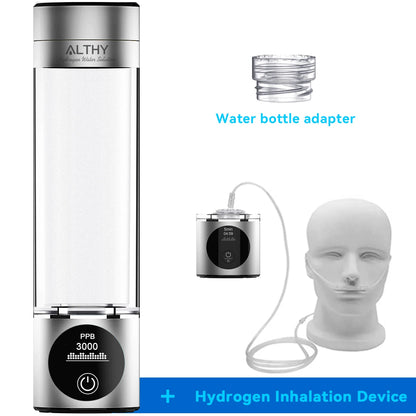

ALTHY Premium Hydrogen Water Bottle 5,000 PPB | DuPont SPE+PEM | Dual Chamber

• Model: H2-007
• Capacity: 280 ml
• Core Tech: SPE + PEM dual-chamber ionizer; multilayer platinum-plated titanium electrodes
• Membrane: DuPont™ Nafion® 117 (separates O₂/O₃/Cl₂; delivers H₂ only)
• Hydrogen Concentration: up to 5,000 ppb
• ORP: as low as −300 mV to −700 mV (depends on source water

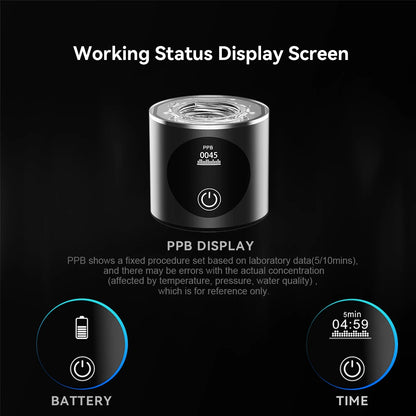

• Display: PPB, time, and battery status (PPB is indicative; actual value varies)
• Water Types: Mineral, purified, RO, or distilled potable water
• Inhalation: Simple H₂ absorption port (nasal-cannula ready)
• Power: USB-C, 5V/1A–2A (rechargeable battery)
• Dimensions: 60 × 60 × 230 mm
• Body Material: BPA-free, food-grade Tritan (USA) or LG BPA-free PC (infant-bottle grade)
• Compliance: RoHS; vendor states additional testing via a U.S. agency authorized by IHSA (QR code for report)
• Care: Self-clean as needed; deep clean with food-grade citric acid every 2–4 weeks

PPB — what it means & how to read it

• PPB = parts per billion of dissolved molecular hydrogen (H₂) in the water.
• “Up to 5,000 ppb” is a peak value under optimal conditions (cool water, clean electrodes/membrane, correct cycle).
• Time to target: use the longer production cycle (typically 10–12 minutes) to approach higher ppb; shorter cycles (~5–6 minutes) yield lower ppb.
• Readings vary with temperature, pressure, and water quality. The on-device PPB figure follows a fixed procedure and is for reference—not a lab assay.

• Supercharge your metabolism — Supports efficient cellular energy production, so you feel switched on and ready to move.

• Improve performance — Helps counter everyday oxidative stress and promotes faster-feeling post-workout recovery.

• Recharge your body — A clean daily reset that helps you bounce back, shake off fatigue, and feel renewed.

• Boost your immunity — Supports gut balance and whole-body resilience as part of a consistent hydration ritual.

• Gain clarity & focus — Steadier mental energy for clearer thinking, better flow, and fewer afternoon dips.

• Capture your youth — Everyday cellular defense that supports skin vitality and healthy aging habits.

• Clean, smooth hydration — Turns ordinary water extraordinary with molecular hydrogen for a crisp, craveable taste.

• Proof, not guesswork — On-device PPB and time display so you can see potency in real time.

• Pure by design — SPE+PEM dual-chamber with DuPont™ membrane isolates unwanted gases for ultra-clean H₂.

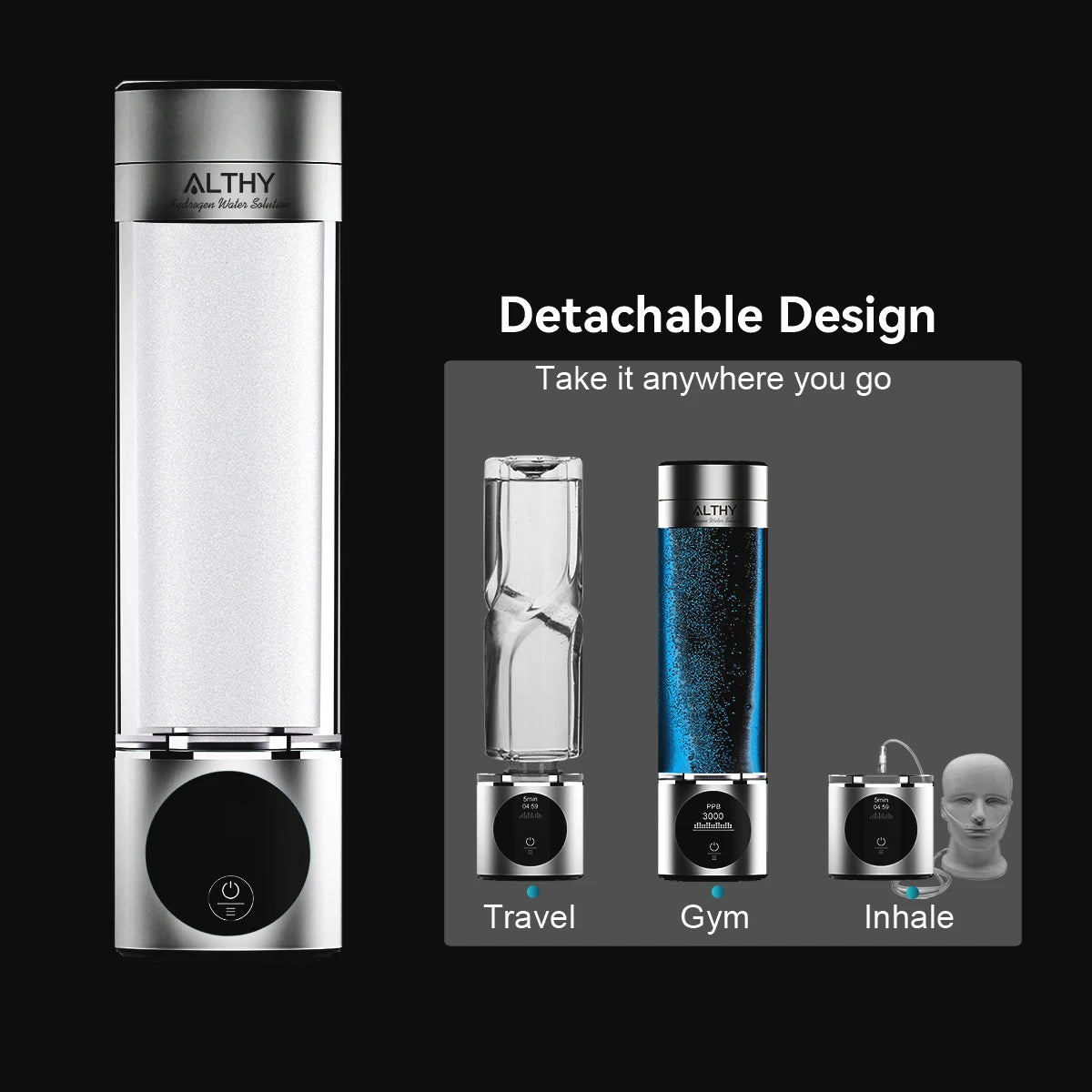

• Built for real life — Leak-proof, USB-C rechargeable, quick self-clean; easy to keep in rotation at home, gym, or travel.

• Not a medical device. For pregnancy, chronic conditions, or respiratory issues, consult a healthcare professional before use.
• Use potable water only. Do not use carbonated/saline water or add powders, minerals, essential oils, or flavor drops to the base.
• Use cool to room-temperature water. Avoid hot/boiling water and do not freeze the bottle.
• Do not block the bottom gas-vent during operation or inhalation.
• Inhalation mode: use only a clean nasal cannula; remain awake and attentive; stop if you feel discomfort. Keep away from children.
• Keep out of reach of kids. Not a toy.
• Do not open, puncture, or modify the base or membrane module.
• Do not submerge the base. Wipe with a slightly damp cloth only.
• Charging: use 5V USB-C (1–2A). Avoid high-voltage “fast-charge” bricks. Do not operate in wet environments or while charging.
• Pressure & travel: after production or flights, open the cap slowly to release pressure; expect bubbles/off-gassing.
• Temperature exposure: do not leave in hot cars or in direct sun for extended periods.

Care & Maintenance

• Daily: rinse the bottle after use; let it air-dry with the cap off.
• Weekly: run the self-clean program.
• Every 2–4 weeks: deep clean with food-grade citric acid; rinse thoroughly. Increase frequency in hard-water areas.
• Descaling tip: if white mineral film appears or PPB drops, repeat citric-acid soak until clean.
• Bottle body: hand-wash only; avoid abrasive pads and harsh detergents. (Do not put the base in a dishwasher.)
• Membrane/electrodes: do not scrub; rely on self-clean and citric-acid cycles.
• Cannula: replace regularly; clean or discard after each session per hygiene best practice.
• Storage: store dry, cap off, in a cool, shaded place.

PPB & Use Notes

• PPB = parts per billion of dissolved molecular hydrogen (H₂). Display value is indicative; actual concentration varies with water quality, temperature, and cycle length.
• For higher readings, use the longer production cycle and clean hardware; drink soon after generation to minimize off-gassing.
• If taste, odor, or performance changes, perform a deep clean and switch to different source water (purified, RO, distilled, or mineral).

First Use — one-time setup

1. Charge the base via USB-C (5V, 1–2A) until full.
2. Rinse the bottle, cap, and straw parts with warm water; air-dry.
3. Run one self-clean cycle with potable water; discard the water.

Daily Use — drink hydrogen water

1. Fill to the max line with cool, potable water (purified, RO, distilled, or mineral). Do not use carbonated/saline water.
2. Attach the bottle to the base and close the cap. Ensure the bottom gas-vent is unobstructed.
3. Power on. Select cycle: Short (~5–6 min) for quick use; Long (~10–12 min) to approach higher ppb.
4. Watch the display. You’ll see time and PPB* progress during generation.
5. When the cycle ends, open the cap slowly (normal off-gassing/bubbles).
6. Drink promptly for best potency (H₂ off-gasses over time). Optionally swirl once to lift micro-bubbles.
7. Top-up and repeat as needed.

Optional — H₂ inhalation

1. Connect a clean nasal cannula to the inhalation port.
2. Sit upright, remain awake and attentive; start the generation/inhalation per device instructions.
3. Stop immediately if you feel discomfort. Keep away from children.

After Use — quick care

1. Rinse the bottle with warm water; let it air-dry with the cap off.
2. Wipe the base with a slightly damp cloth; do not submerge.
3. Run self-clean weekly; deep-clean with food-grade citric acid every 2–4 weeks (more often in hard-water areas).

Tips for higher PPB

1. Use the long cycle with cool water and a clean membrane/electrodes.
2. Drink right after the cycle completes to minimize off-gassing.
3. If PPB drops, deep-clean and try a different water source.

Safety notes

1. Use potable water only. Do not modify the base or block the gas-vent.
2. Do not operate while charging or in wet environments.
3. Not a medical device; for specific conditions (pregnancy, respiratory issues, chronic disease) consult a professional.

*PPB = parts per billion of dissolved molecular hydrogen (H₂). Display value is indicative; actual concentration varies with water quality, temperature, and cycle length.

Core Architecture
• SPE + PEM dual-chamber reactor with multilayer platinum-plated titanium electrodes
• DuPont™ Nafion® 117 membrane (proton-exchange)

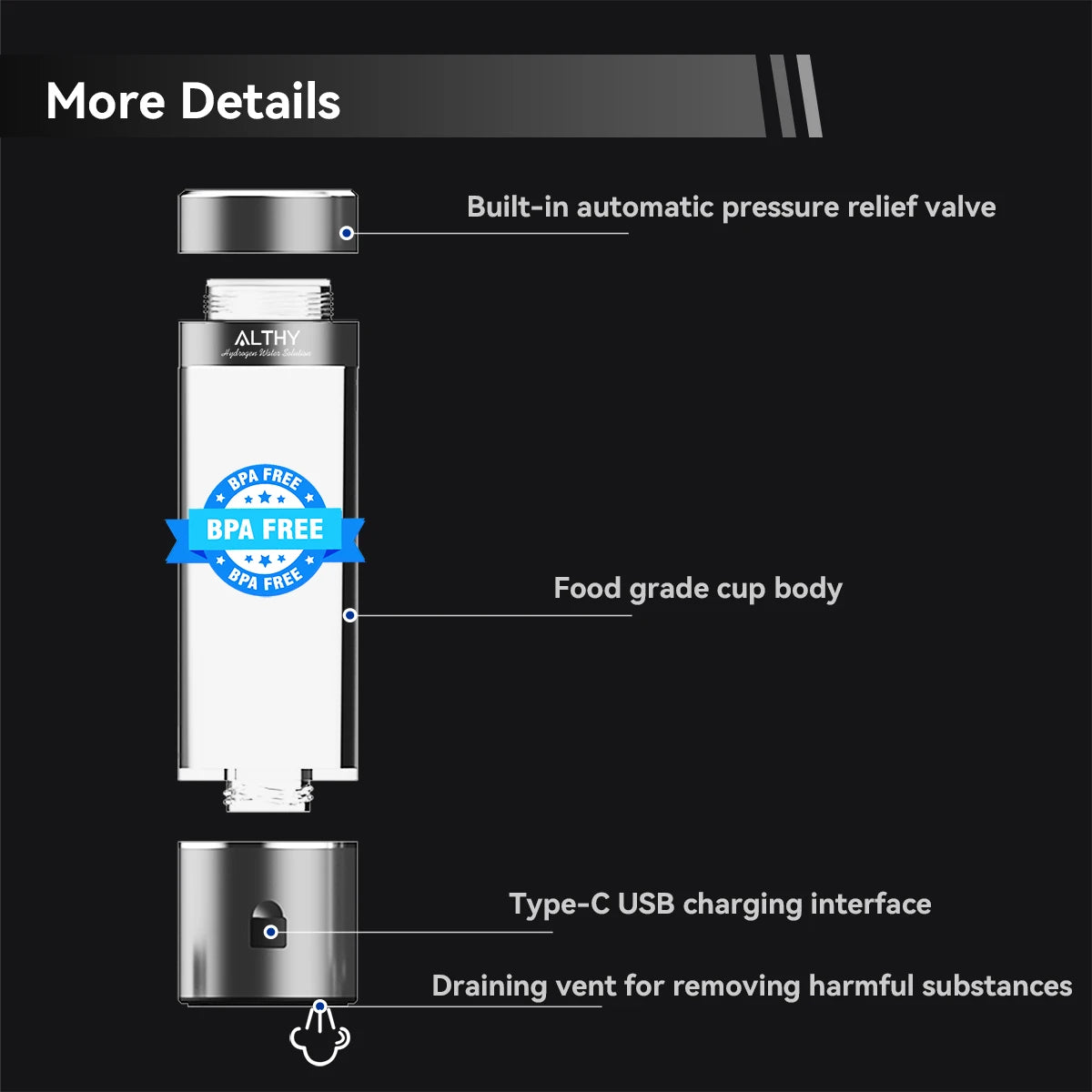

• Separate gas-exhaust path (bottom vent) + drinking chamber
• On-device microcontroller for cycle timing and PPB indication

Process, Step by Step

1. Fill — Add cool, potable water (purified, RO, distilled, or mineral) to the max line and attach the bottle to the base.
2. Activate — Start a production cycle (short ~5–6 min or long ~10–12 min).
3. Electrolysis begins — The platinum-titanium electrodes split H₂O into H₂ and O₂.
4. Proton exchange — The Nafion® membrane selectively conducts protons (H⁺) while blocking contaminants and routing oxygen/ozone/chlorine to the waste-gas vent, not into your drink.
5. H₂ dissolution — Pure molecular hydrogen (H₂) accumulates and dissolves into the drinking chamber, driving ORP lower (more negative).
6. Live readout — The display shows time and an indicative PPB value based on a fixed procedure.
7. Ready to drink — When the cycle ends, open the cap slowly (normal off-gassing) and drink promptly for best potency.

Why Dual-Chamber SPE+PEM Matters
• Purity: Unwanted gases (O₂/O₃/Cl₂) are separated and vented, while H₂ stays in the water.
• Stability: Clean separation helps maintain higher dissolved hydrogen levels for the duration of the cycle.
• Taste: Removing reactive by-products keeps the taste clean and crisp.

About PPB & ORP
• PPB (parts per billion) indicates dissolved molecular hydrogen concentration. “Up to 5,000 ppb” is achievable under optimal conditions (cool water, clean hardware, long cycle).
• ORP (oxidation-reduction potential) typically shifts to more negative values (≈ −300 mV to −700 mV), reflecting a more reducing environment.
• Readings vary with water quality, temperature, and pressure; on-device PPB is for reference, not a lab assay.

Inhalation Mode (Optional)
• The unit provides a simple H₂ absorption port (nasal-cannula ready). During operation, a portion of generated hydrogen routes to the port for direct inhalation. Use only while awake and attentive; stop if discomfort occurs. Keep away from children.

What Improves Performance
• Long cycle + cool water → higher PPB.
• Clean membrane/electrodes → run self-clean weekly; deep-clean with citric acid every 2–4 weeks.
• Drink soon after generation → minimizes natural off-gassing.
